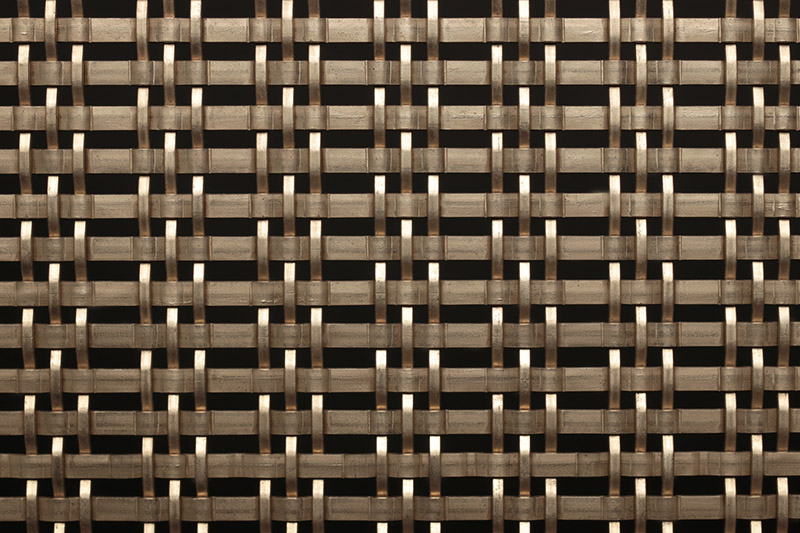

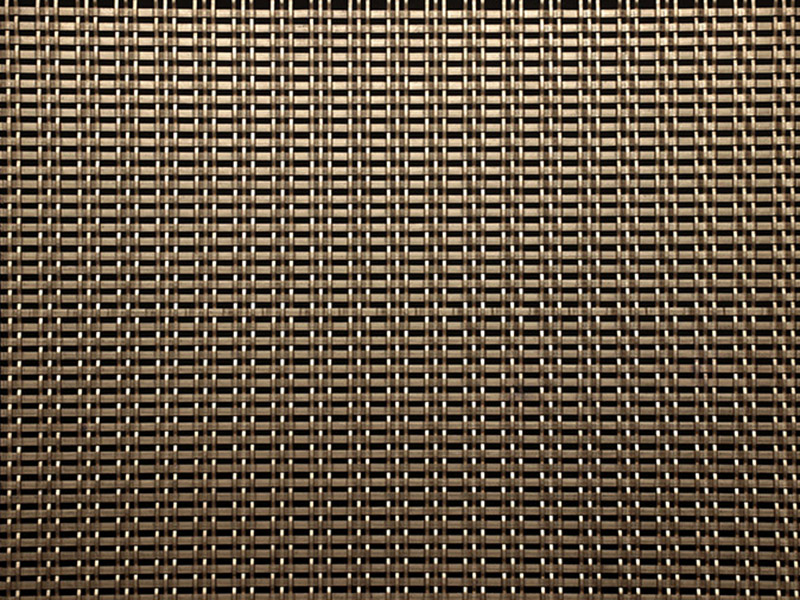

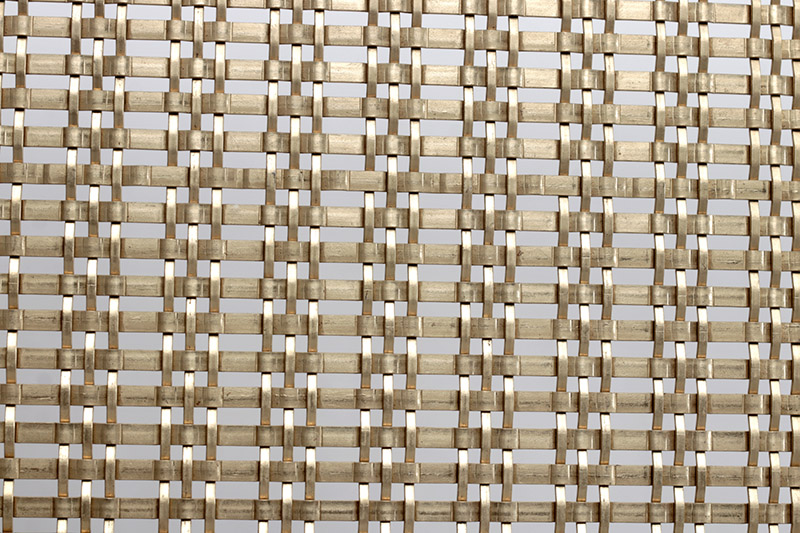

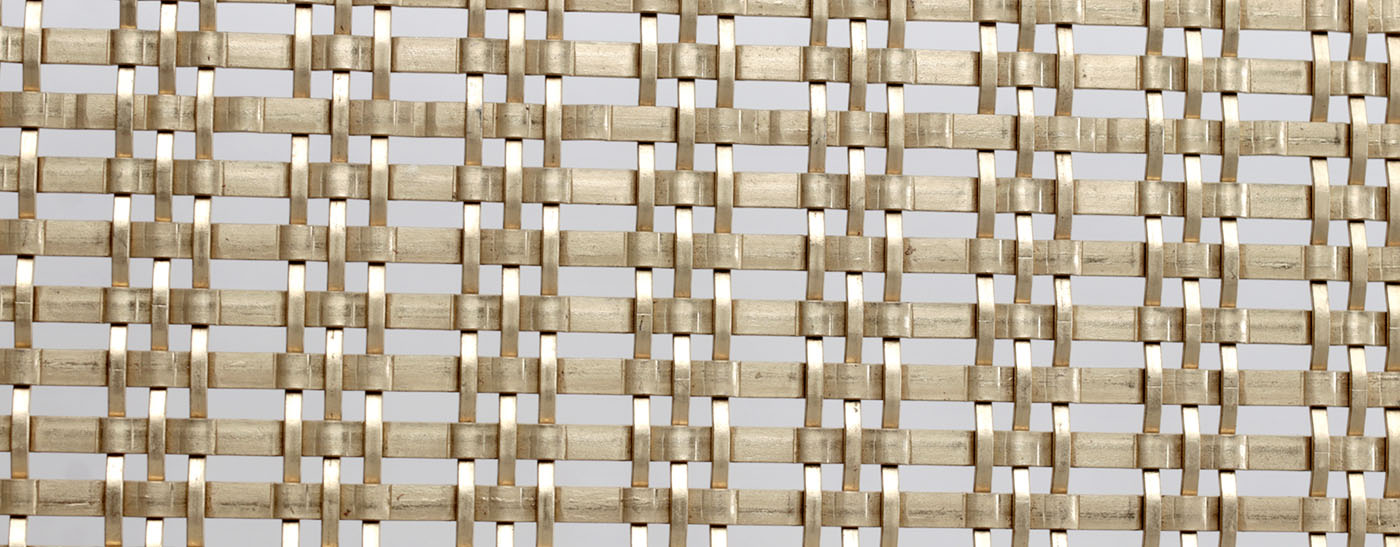

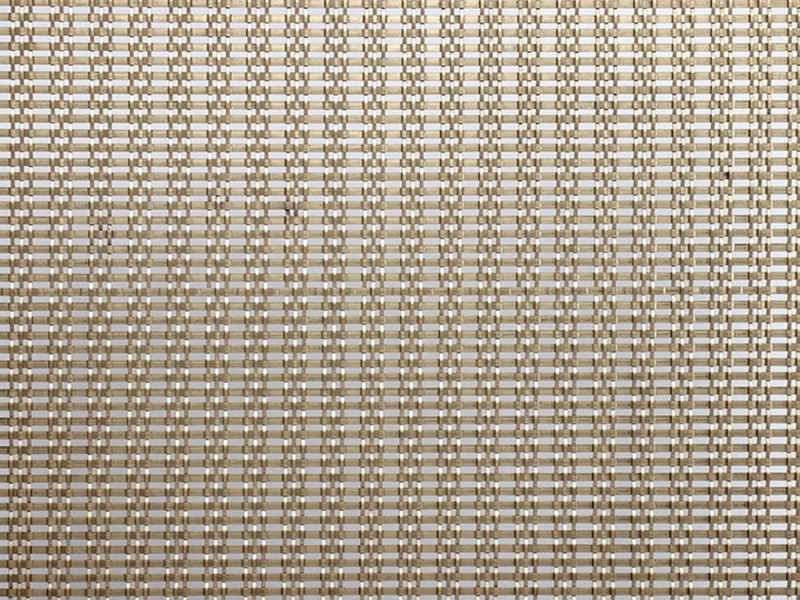

ARCH-GRID 2142 decorative stainless steel wire mesh is meticulously crafted from two wide flat wires and three narrow flat wires, combining durable strength with a unique surface texture. The square openings create a balanced design, allowing for light and airflow while maintaining a degree of privacy.
Product Name:ARCH-GRID 2142
Material: Stainless Steel

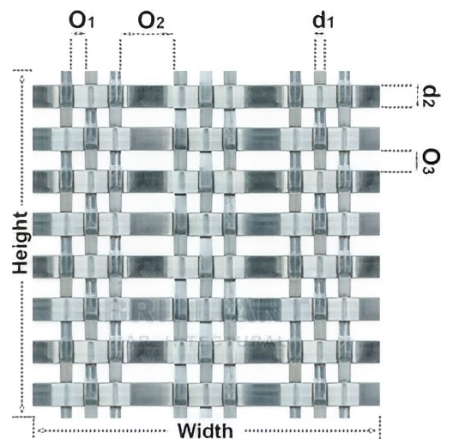

Wire Size (d1), mm (in): 2.1 (.083)
Wire Size (d2), mm (in):4 (.157)
Opening (O1), mm (in): 2 (.079)
Opening (O2), mm (in):9 (.354)
Opening (O3), mm (in): 3 (.118)
Overall thickness, mm (in): 2 (.079)
Open Area: 29%
Approx. Weight, kg/m2 (lb/ft2): 6.6 (1.35)
